产品应用 Application

光伏发电系统用无卤交联聚烯烃双层光伏电缆。该电缆为最新IEC62930 标准，其额定电压为1500 V DC。

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-components like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.
Cable surface marking

TUV SUD  IEC62930 62930IEC131 1X ** mm2  1500VDC  HALOGEN FREE LOW SMOKE

认证 Certificate

IEC62930:2017 by TUV

包装 Packing

4平方 100米/卷，112卷/托；500米/盘，18盘/托，1000米/盘，10盘/托。 其它规格根据客户要求订制。

Packaging: 4mm PV cable, 100 meters/roll, 112 rolls per pallet; 500 meters/roll, 18 rolls per pallet. 20 pallets in one 20FT container. Other type can be customized

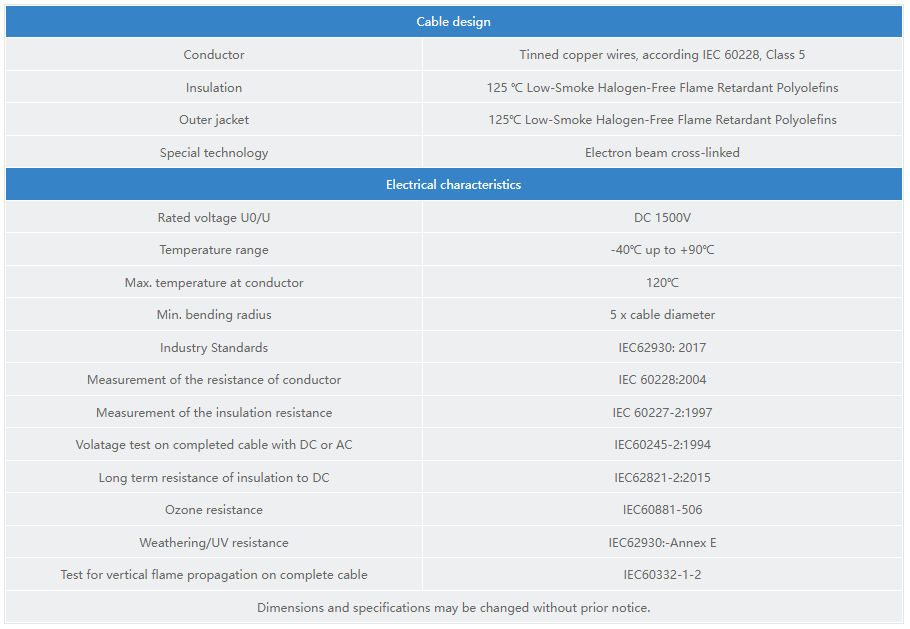

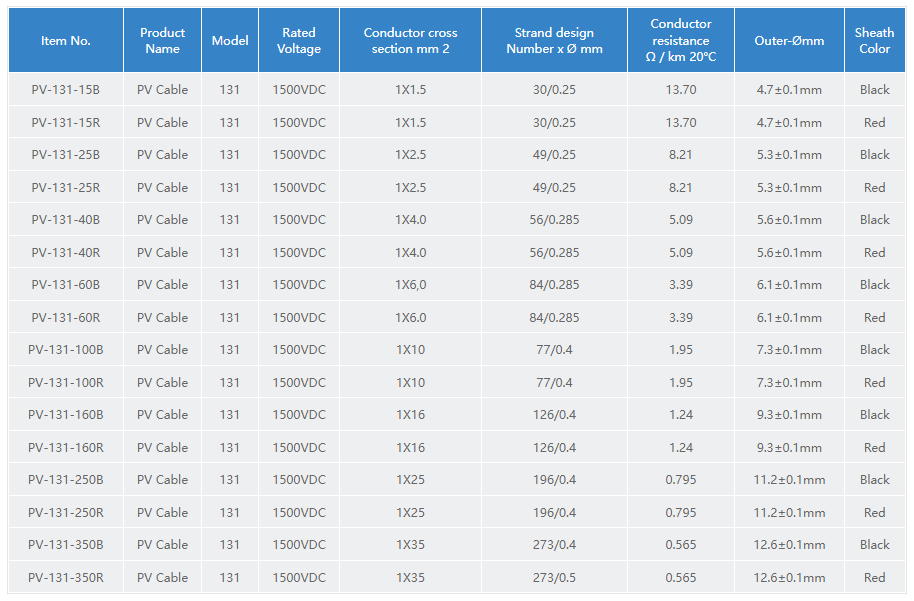

Product technical data sheet
