应用 Application

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-com¬ponents like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.
Cable surface marking
TUV SUD   EN50618 H1Z2Z2-K  1X ** mm2  1500Vdc   DO NOT DISCONNECT UNDER LOAD   SOWELLSOLAR

证书 Certificate

EN50618:2016 by TUV

包装 Packing

Packaging: 4mm PV cable, 100 meters/roll, 112 rolls per pallet; 500 meters/roll, 18 rolls per pallet. 20 pallets in one 20FT container. Other type can be customized

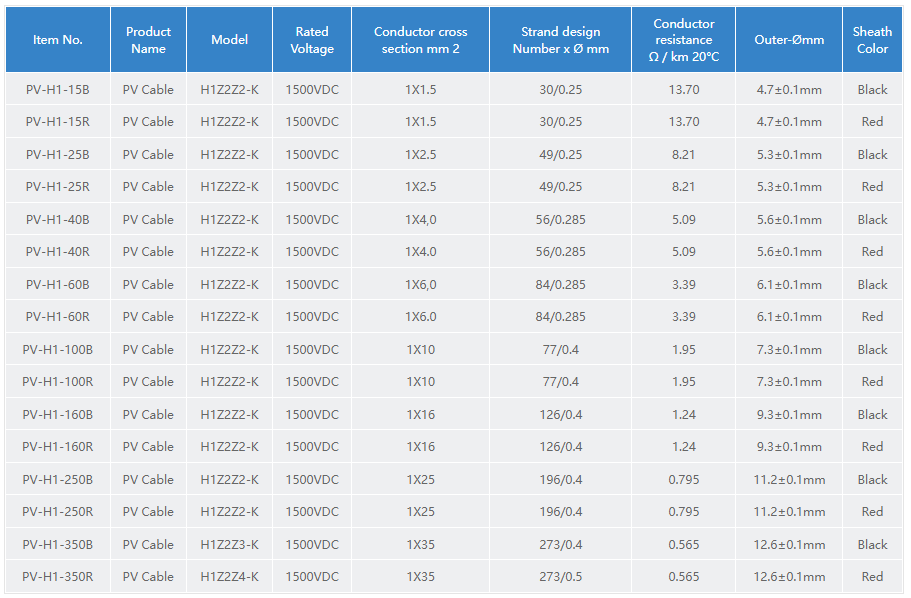

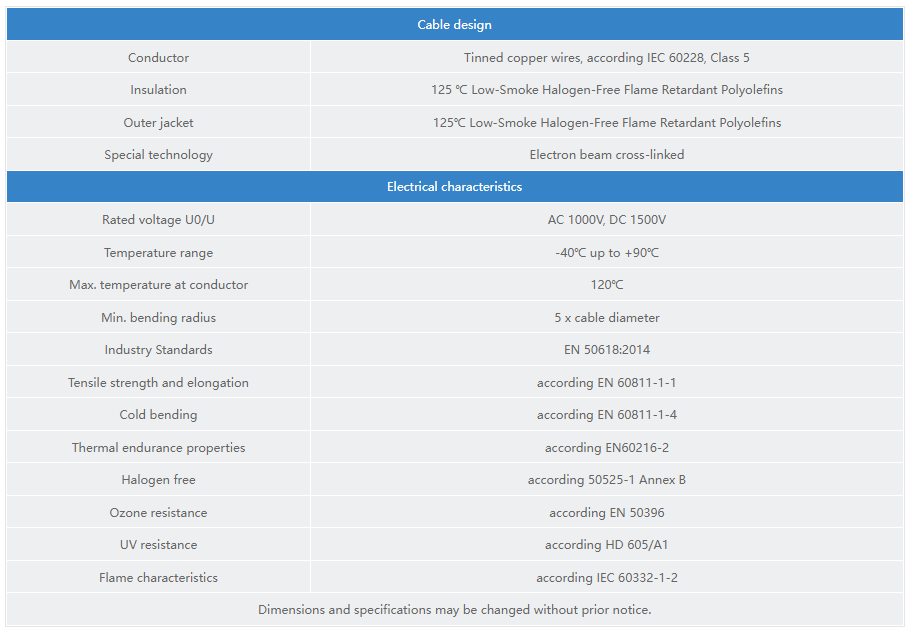

Product technical data sheet
