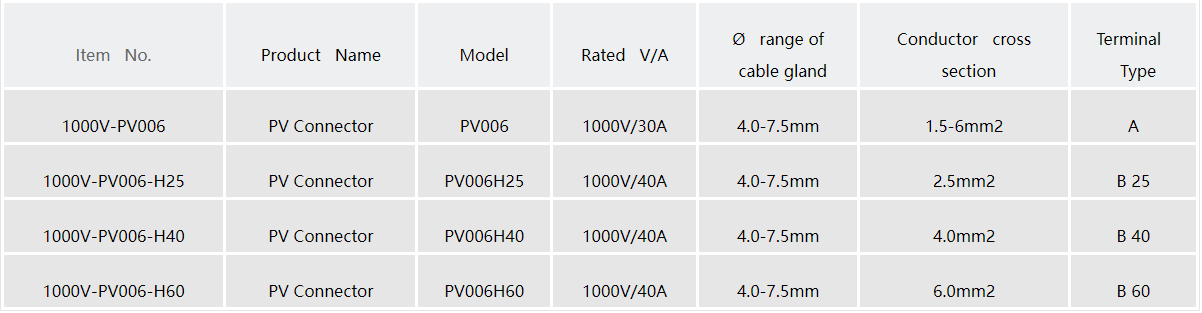

Type: PV006
Rated Voltage: 1000V
Rated Current: 30A
Degree of protection (mated): IP67
Ambient temperature range: -40℃～85℃
Contact resistance：＜0.35mΩ

Easy to open design

  General：

This connector is specially designed for solar module, adopt inner drum type crown spring contact, self- locking instruction, make electrical contact and connect more fastness, system voltage 1000V, rated current 30A. Cable length 1M or any other length customer defined.

This connector is convenience and reliable, with MC4 perfect compatibility.

Characteristic：

1. The connector adopt inner drum type crown spring contact, make electrical connect fastness.

2. Adopt firm ultrasonic welding to match convex terminal design.

3. Self-locking, connect convenience and reliable.

4. Strong ageing resistance for outer housing, UV resistant ability, suit for using in outdoor severe environment.

5. Match with MC4 connector.

6. Electrical property well, contact resistance less than 0.25mΩ, less heating and low power consume.
