产品应用 Application

光伏发电系统用无卤交联聚烯烃双层光伏电缆。该电缆认证标准为 TUV 2PFG 1169, 型号为PV1-F, 额定电压 1000V

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-components like PV-junction boxes and PV-connectors, which have a rated voltage of 100 V DC.
Cable surface marking
 PV CABLE 2 PfG 1169 PV1-F 1X ** mm2   0.6/1,0KV   DO NOT DISCONNECT UNDER LOAD  TYKJ

认证 Certificate

2 PfG 1169 by TUV

包装 Packing

Packaging: 4mm PV cable, 100 meters/roll, 112 rolls per pallet; 500 meters/roll, 18 rolls per pallet. 20 pallets in one 20FT container. Other type can be customized

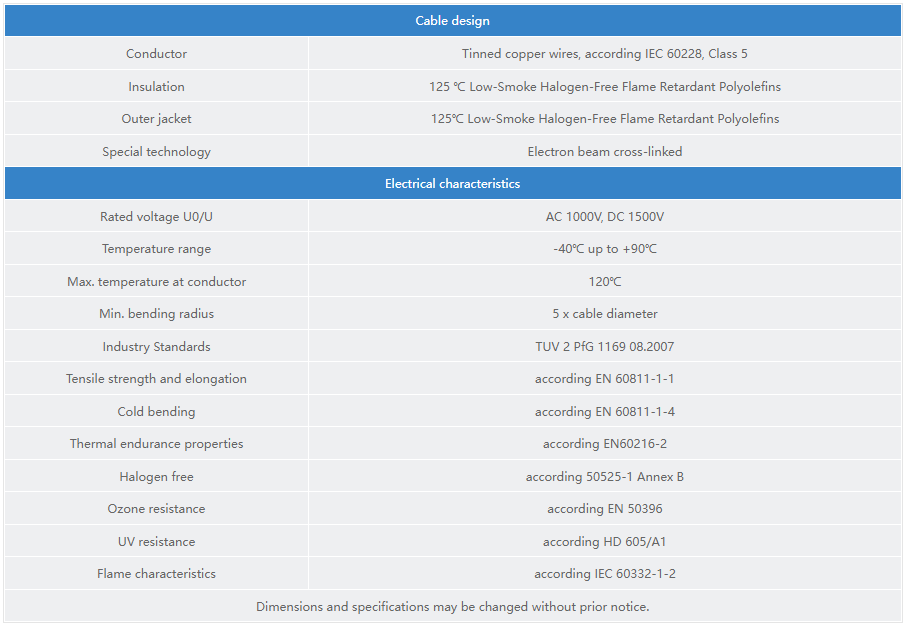

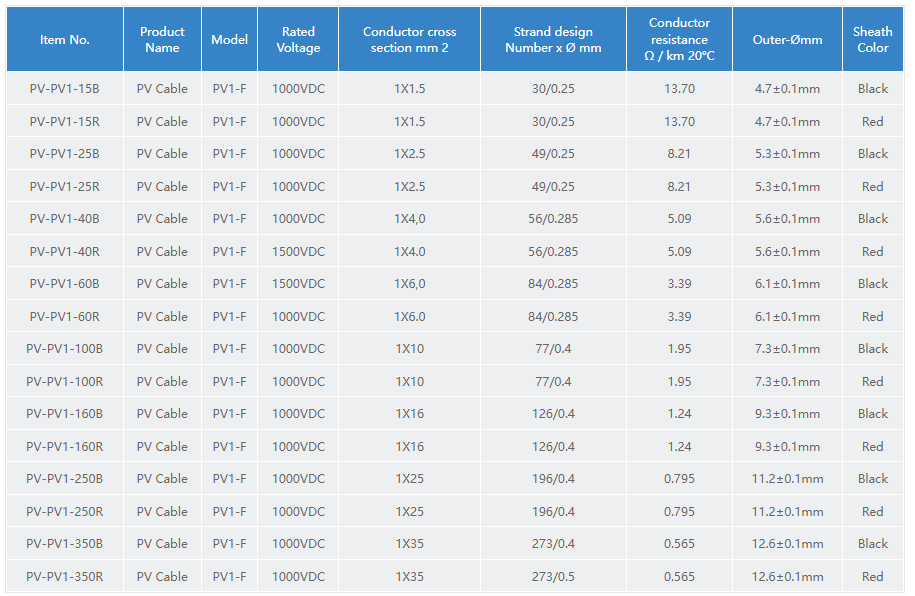

Product technical data sheet
